Main Features

• MIDI Control: Full assignable MIDI controls
• PRO DJ LINK: ✓
• Beat FX: ✓
• PLLOCK Fader Caps: ✓
• Auto Standby: ✓
• DVS Control: rekordbox; Serato DJ Pro (paid license or subscription)
• Software System Requirements: See rekordbox.com for latest specifications

Bluetooth Audio Input

• Wireless System: Bluetooth ver. 5.0
• Maximum Communication Distance: Approx. 10 m in unobstructed environment (distance differs by environment)
• Frequency Band: 2.4 GHz
• Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum)
• Supported Codecs: SBC, AAC

Wireless LAN

• Standard: IEEE 802.11 a/b/g/n/ac
• Frequency Bands: 2.4 GHz / 5 GHz

Accessories

• DJA-9 cord
• Power cord
• Owner’s Manual (for some regions)
• Quick Start Guide
• Precautions for Use

Specifications

• Dimensions (W × D × H):
  • 407.4 × 414.7 × 107.9 mm
  • 407.4 × 467.7 × 123.9 mm (with the tallest antenna, stand upright)
• Weight: 22.4 lb
• Sampling Rate: 96 kHz
• A/D, D/A Converter: 32-bit
• S/N Ratio (MASTER, BOOTH, SEND/RETURN A): 120 dB
• S/N Ratio (Line): 105 dB
• S/N Ratio (Phono): 88 dB
• S/N Ratio (Mic): 79 dB
• Distortion: 0.005 % (LINE)

Channels

• EQ/Isolator: 3-band
• EQ Range: Built-in, switchable 3-band equalizer: −26 dB to +6 dB

Performance Control

• Channels: 4
• MULTI I/O: USB (Type-A)
• Sound Color FX:
  • Space
  • Ducking Echo
  • Noise
  • Crush
  • Filter
• Beat FX:
  • Delay
  • Echo
  • Ping Pong
  • Spiral
  • Reverb
  • Trans
  • Flanger
  • Phaser
  • Filter
  • Triplet Filter
  • Roll
  • Helix
  • Vinyl Brake
  • Mobius
• FX Frequency Buttons: ✓
• Screen Display: ✓
• X-PAD: ✓
• Headroom Quantize: ✓

Crossfader

• Type: Magvel Fader
• CURVE Assignable: ✓
• Fader Curve: 3

Mic

• Mic Connections:
  • XLR / 1/4-inch Combo jack
  • 1/4-inch TRS jack
• Mic EQ: 2-band
• Mic EQ Range: +12 dB to −12 dB
• Phantom Power: ✓
• Microphone Effects: Echo, Pitch, Megaphone, Reverb
• Push-to-talk Function: ✓
• Talkover: Dedicated button
• Talkover Attenuator: ✓

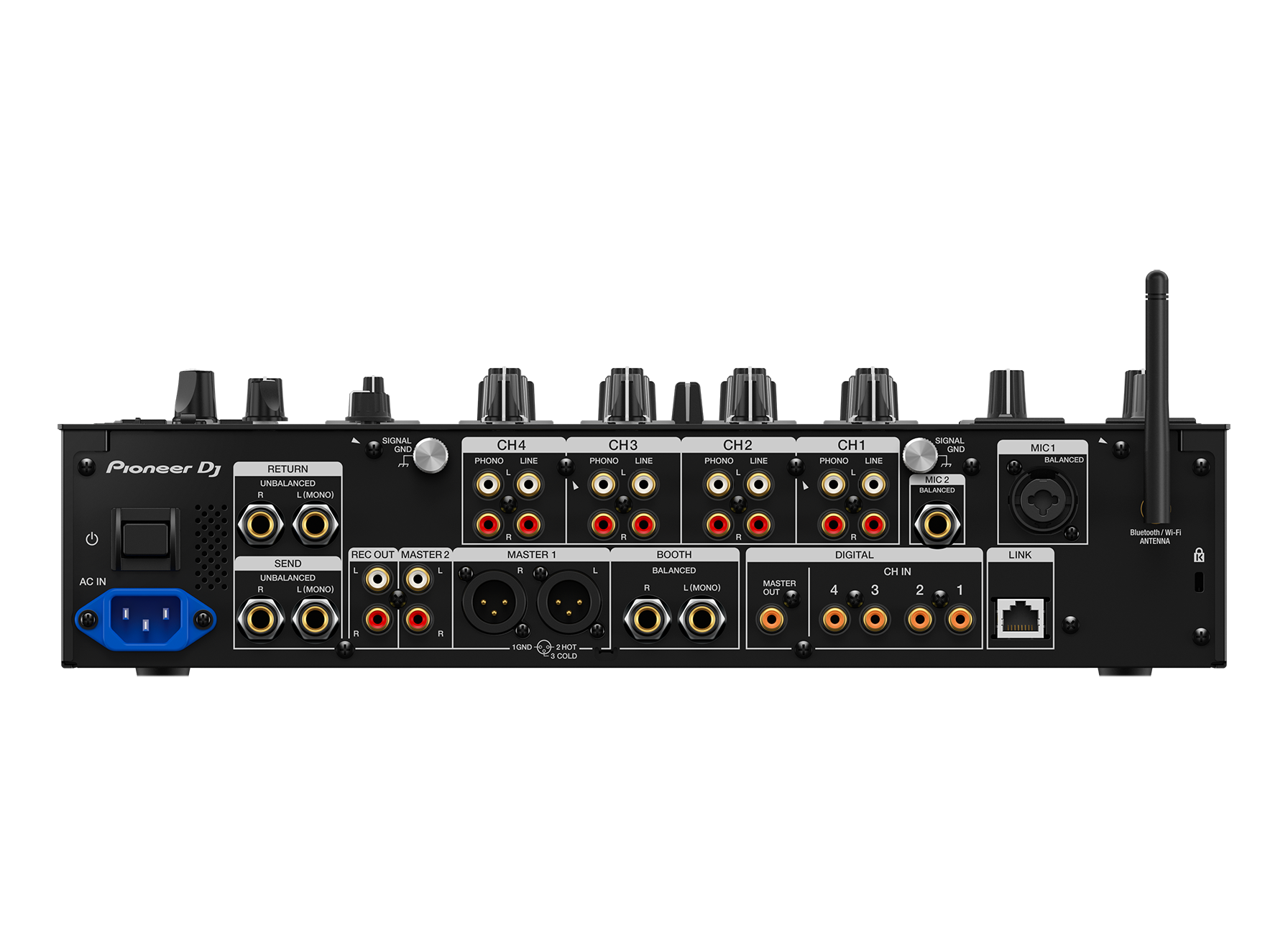

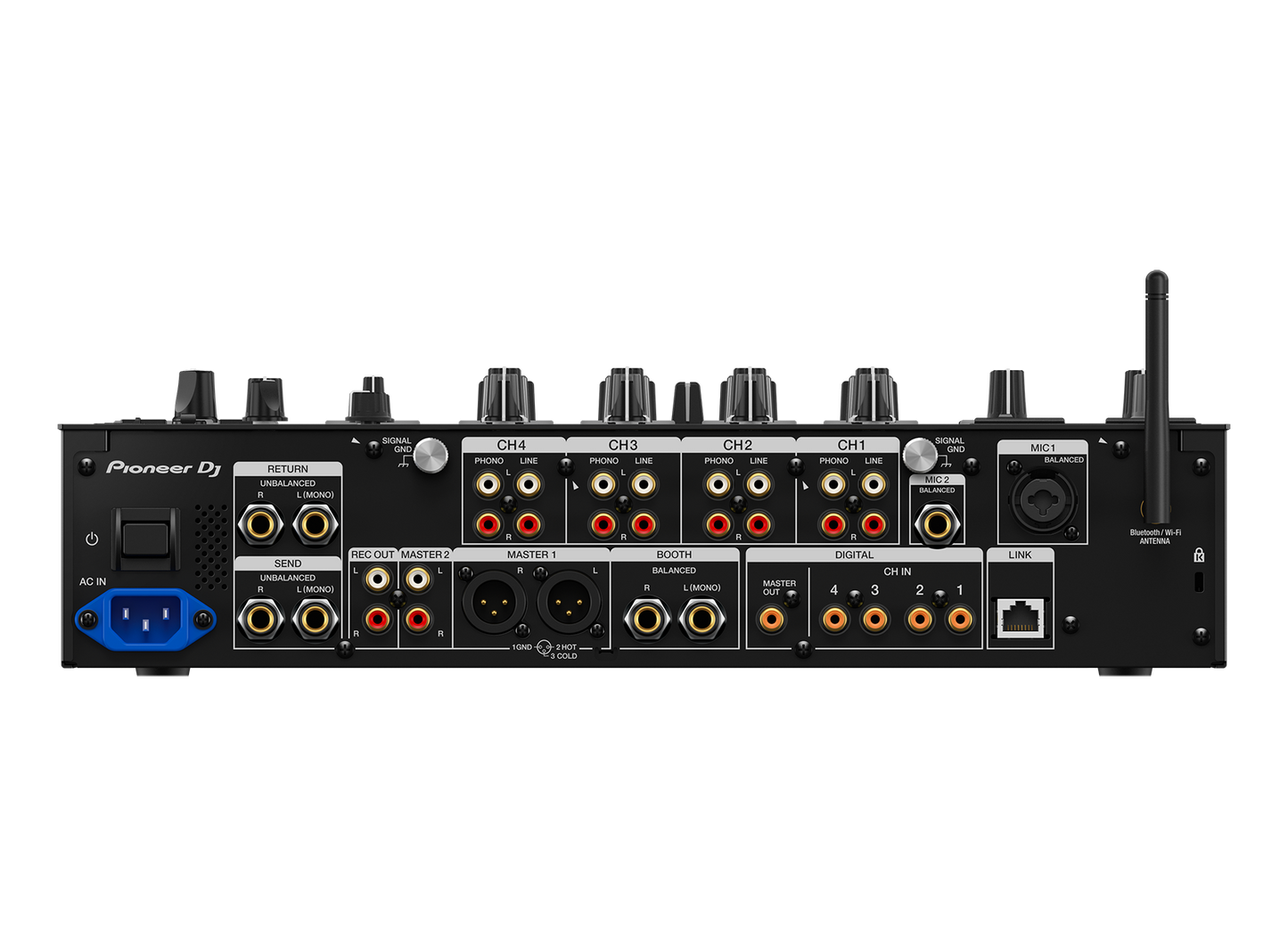

Terminals

Inputs

• 4 DIGITAL (Coaxial)
• 4 LINE (RCA)
• 4 PHONO (RCA)

Send/Return

• 1 SEND (1/4-inch TS jack)
• 1 RETURN (1/4-inch TS jack)

LAN

• 1

Outputs

• 1 MASTER (XLR, RCA)
• 1 BOOTH (1/4-inch TRS jacks)
• 2 HEADPHONE MONITOR (1/4-inch jack, mini-jack)
• 1 REC OUT (RCA)
• 1 DIGITAL (Coaxial)

USB

• 2 USB-A ports
• 2 USB-C ports

*Specifications and design are subject to change without notice.
